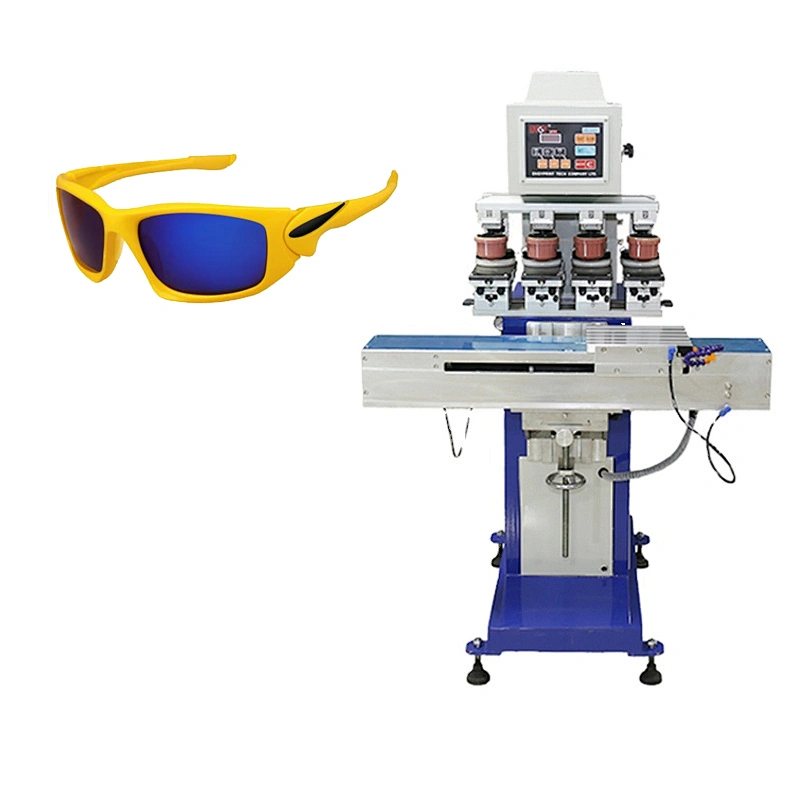

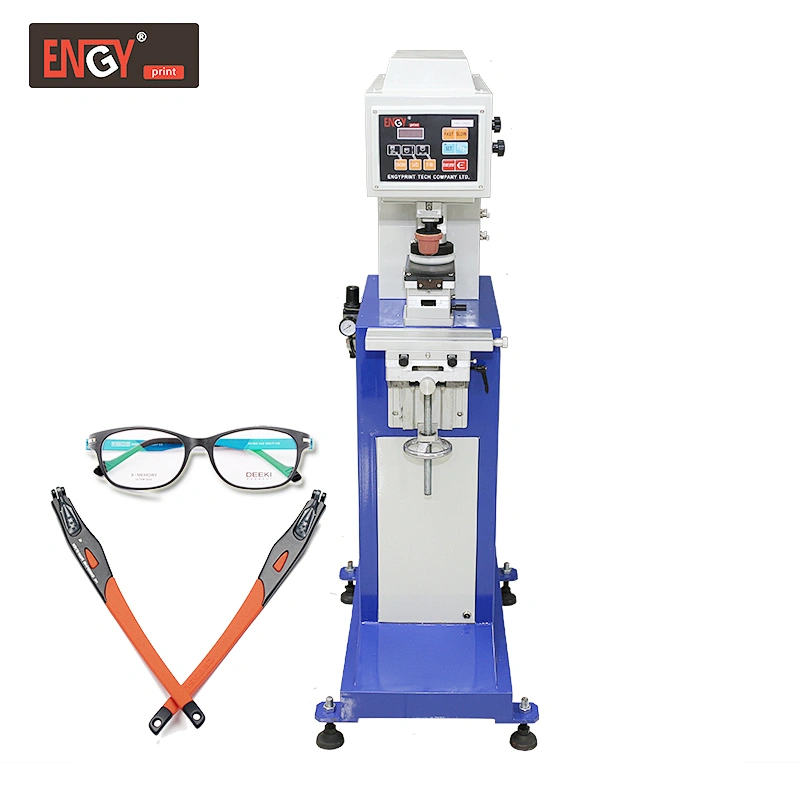

For Pen Glass Cup Sunglasses Pneumatic 1 Color new Pad Printing Machinery from China Manufacturer

After-sales Service Provided:Engineers available to service machinery overseas
Plate size:100x250mm
Max printing size:Dia. 90mm
Plate thickness:0.25/0.3/0.5/10mm
Front & back working stroke:150mm
Warranty:one year
Printing capacity:2600 cycles/hour
Drive:pneumatic
Air consumption:91litre/min(5bar)
Key words:pad printing machine
Type:PAD PRINTER
After Warranty Service:Online support
Local Service Location:None
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Not Available
Warranty of core components:3 months
Condition:New
Plate Type:GRAVURE
Usage:Bill Printer
Usage:Card Printer
Usage:Cloths Printer
Usage:Label Printer
Usage:Paper Printer
Usage:Tube Printer
Automatic Grade:Semi-automatic
Color & Page:Multicolor
Warranty:1 Year
After-sales Service Provided:Online support
Key Selling Points:High-accuracy
Place of Origin:CN;GUA
Applicable Industries:Manufacturing Plant
Applicable Industries:Retail
Applicable Industries:Printing Shops
Applicable Industries:Other
Applicable Industries:Pad Printing Factory
Applicable Industries:Pad printing supplies shop
Marketing Type:New Product 2021
Core Components:Cylinder
Brand Name:ENGY
Voltage:220V/110V
Dimensions(L*W*H):L680 x W460 x H1310 mm
Weight:68kg
Certification:CE Certification

Pneumatic 1 Color Pad Printing Machinery for Pen Glass Cup Sunglasses

Product Description

Pad Printing Machine Standard Features: Sealed cup is more environmental protection and ink saving. Workt table can be adjusted up and down,forward and backward. Programmable up and down, forward and rear stroke. Convenient ink cup installation,cleaning,and ink loading 1 color ink cup pad printing machine. Foot pedal operation allows the hands to place objects on the work table at the same time thus speeding up production and simplifying the work process. Using Germany FESTO pneumatic components. Installed safety guard and emergency stop button (optional). Complying with CE safety standards.

Pad Printing Machine Standard Features:

Sealed cup is more environmental protection and ink saving.
Workt table can be adjusted up and down,forward and backward.

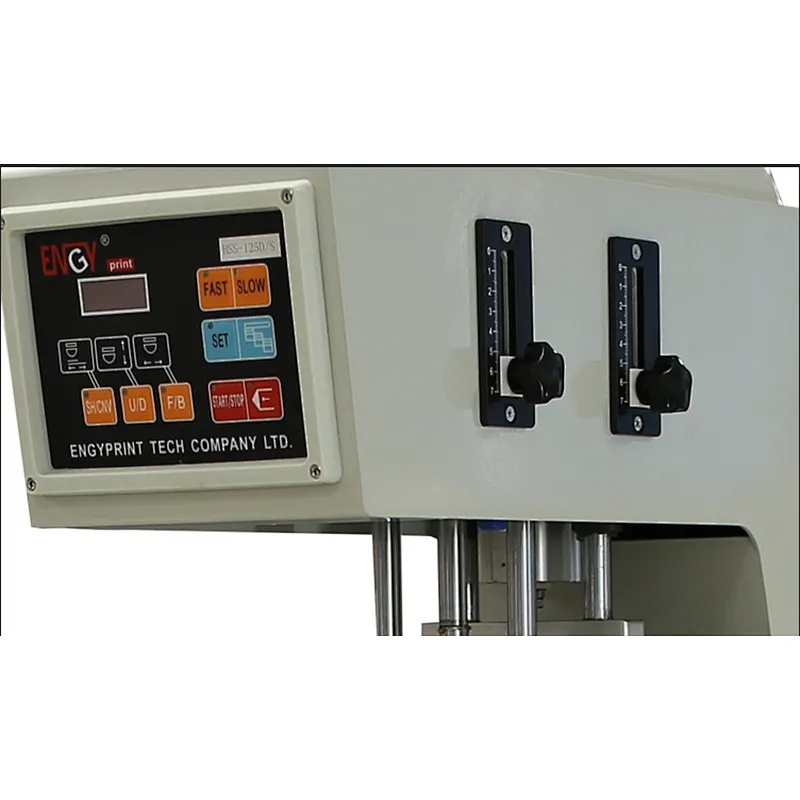

Programmable up and down, forward and rear stroke.

Convenient ink cup installation,cleaning,and ink loading 1 color ink cup pad printing machine.

Foot pedal operation allows the hands to place objects on the work table at the same time thus speeding up production and simplifying the work process.

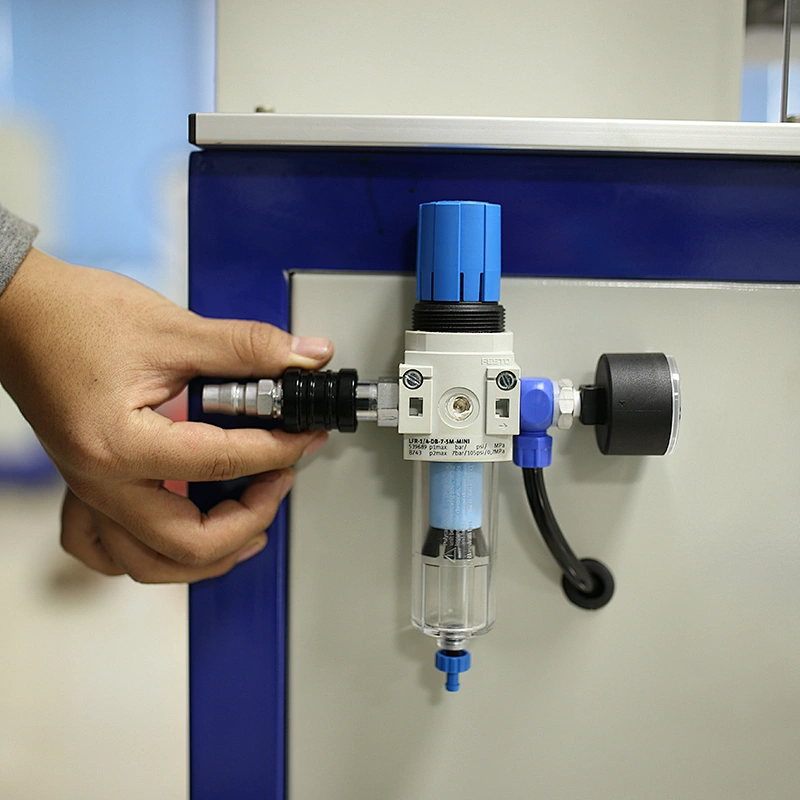

Using Germany FESTO pneumatic components.
Installed safety guard and emergency stop button (optional).
Complying with CE safety standards.

Pneumatic 1 Color Pad Printing Machinery for Pen Glass Cup Sunglasses

Pad Printing Machine Specifications:

Model No	EN-Y125/1	EN-Y150/1J	EN-Y160/4S	EN-Y200/4A	EN-Y250/2S
Print color	Single color	Single color	Four colors	Four colors	Two colors
Type	Open well	Big open well	Well with shuttle	Well with conveyor	Well with shuttle
Plate size	100x100mm	150x150mm	100x150mm	100x200mm	100x200mm
Max. Print size	80x80mm	120x120mm	80x120mm	80x160mm	80x160mm
Printing capacity	2600pcs/hr	1800pcs/hr	800pcs/hr	1300pcs/hr	900pcs/hr
Machine weight	68KG	85KG	138KG	210KG	200KG
Main voltage	110V/220V 60/50Hz 40W
Machine size(mm)	680x460x1310	780x500x1350	950x980x1430	1000x1050x1450	1100x700x1500

Model No	EN-C125/1	EN-C125/2S	EN-C160/4S	EN-C200/4A	EN-C200/6A
Print color	Single color	Two color	Four colors	Four colors	Six colors
Type	Ink cup	cup with shuttle	cup with shuttle	cup with conveyor	cup with conveyor
Plate size	100x200mm	100x200mm	100x250mm	100x300mm	100x300mm
Max. Print size	Dia. 90mm, Dia. 100mm, Dia. 120mm, Dia. 140mm
Printing capacity	2500pcs/hr	1600pcs/hr	800pcs/hr	1300pcs/hr	1200pcs/hr
Machine weight	70KG	80KG	140KG	220KG	240KG
Main voltage	110V/220V 60/50Hz 40W
Machine size(mm)	680x460x1310	680x460x1310	950x980x1430	1000x1050x1450	1000x1050x1450

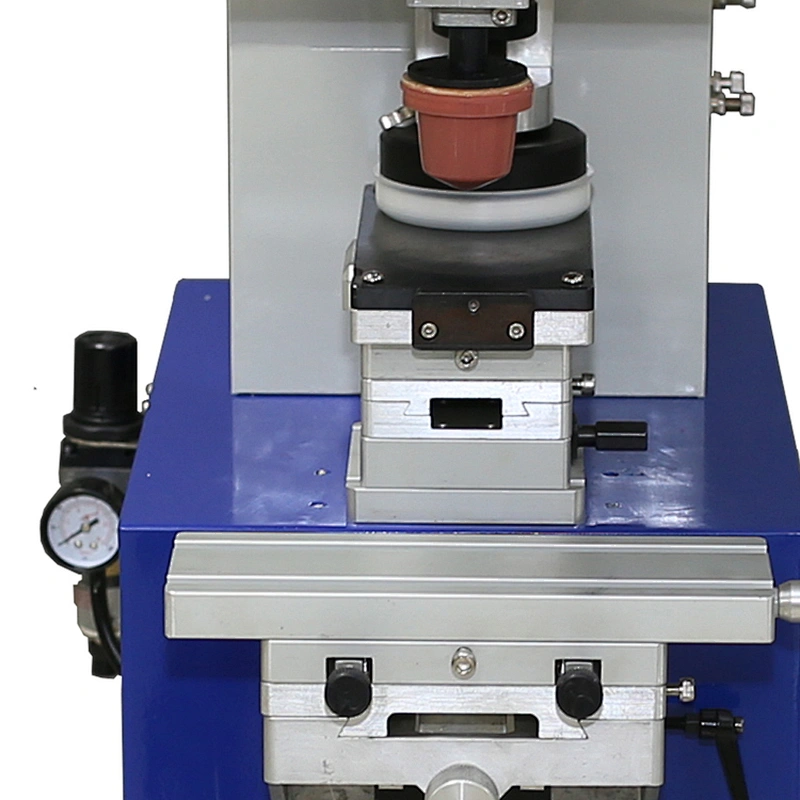

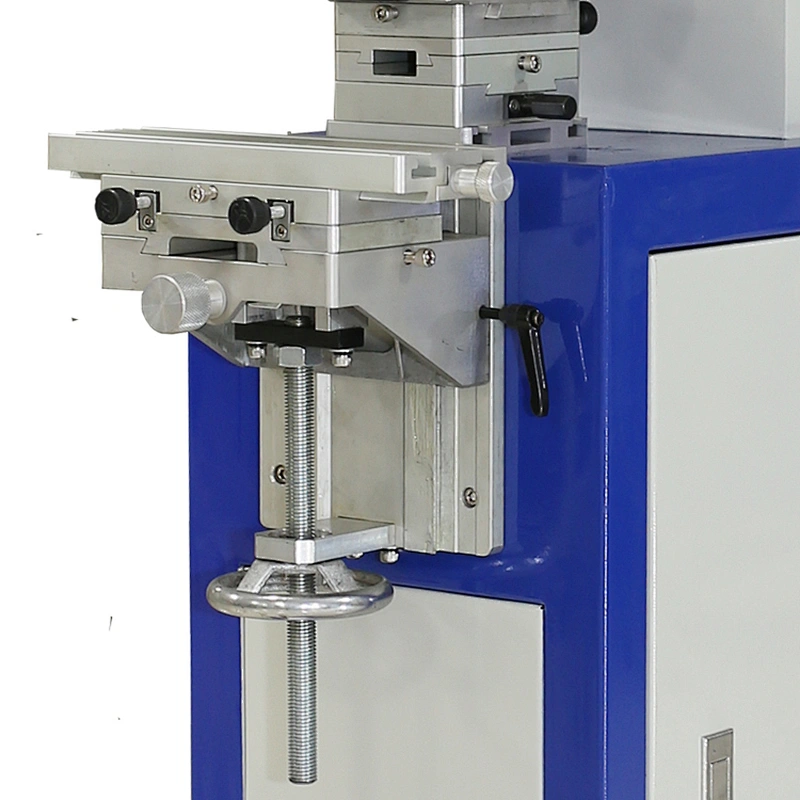

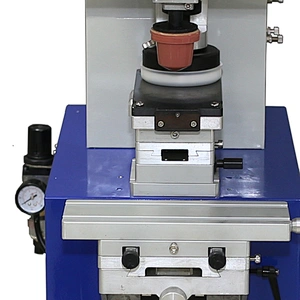

Pad Printing Machine Detail Pictures:

Applications

Application:

Pad printer is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting goods, stationery, etc.
For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches, cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes, electronic components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.
