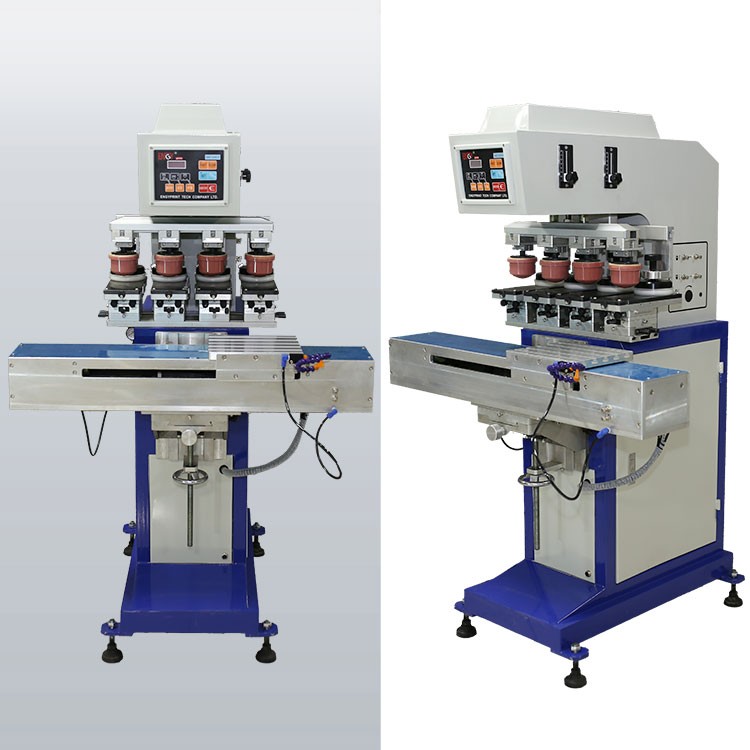

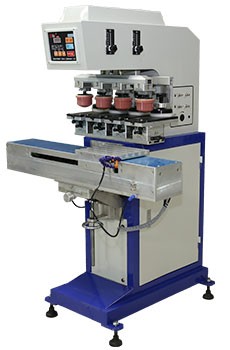

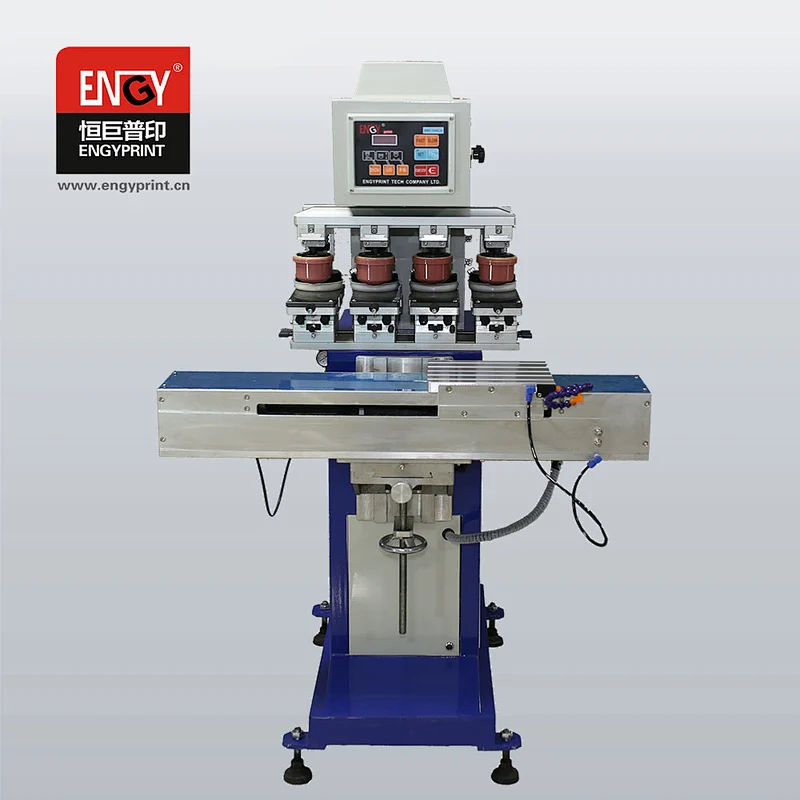

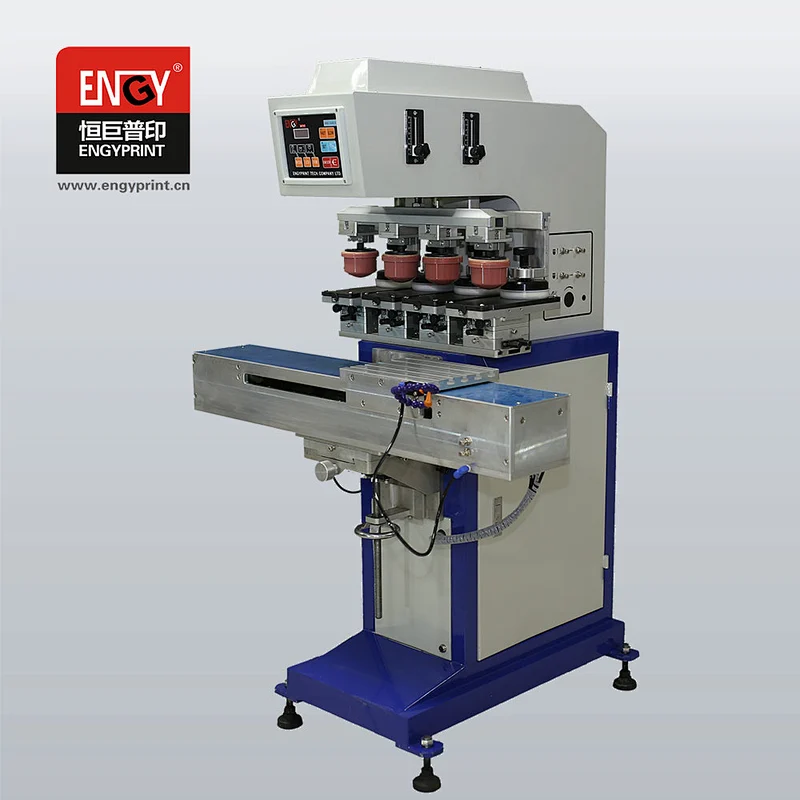

Hot sale EN-C160/4S 4 color sealed ink cup pad printing machine from China Manufacturer

Type:PAD PRINTER
Place of Origin:CN;GUA
Gross Power:40W
Plate Type:GRAVURE
Brand Name:ENGY
Condition:New
Usage:Bill Printer
Usage:Card Printer
Usage:Cloths Printer
Usage:Label Printer
Usage:Paper Printer
Usage:Tube Printer
After-sales Service Provided:Overseas service center available
Voltage:110V / 220V
Certification:CE Certification
Color & Page:Multicolor
Dimensions(L*W*H):L1050 x W830 x H1430 mm
Automatic Grade:Semi-automatic
Weight:135kg
Model Number:EN-C160/4S
Description of product:Pneumatic 4 Color Pad Printer
Printing color:4 color
Plate size:250 x 100mm
Ink cup size (diameter):ID82*OD90mm
Plate thickness:0.5mm
Warranty:one year
Printing capacity:900 cycles/hour
Drive:Pneumatic
Air consumption:91litre/min(5bar)
key words:ink cup pad printing machine

Hot sale EN-C160/4S 4 color sealed ink cup pad printing machine

Product Description

Hot sale EN-C160/4S 4 color sealed ink cup pad printing machine Standard Features

Standard Features:

*Suitable for 1-4 color small size printing, widely apply in many industries including stationery, toys, plastic, gift, electrical appliances, electronic, etc;

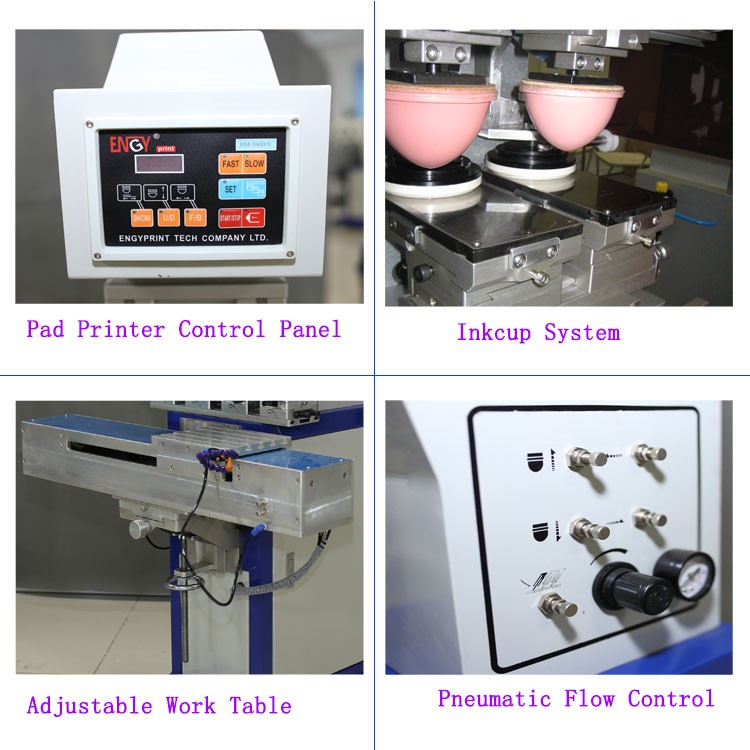

*Microprocessor operation system, electro-pneumatic control;
*160mm standard stroke, ink cup design, no smell and low evaporation;
*Independent adjustment of up and down, forward and rear stroke;
*Versatile X, Y printing pad adjustment;
*Ink cup base with X, Y, Z adjustment;
*The shuttle is disassembly flexible;
*Heavy-duty construction with cabinet ensures years of reliable operation;
*Stable, durable working and fine workmanship;
*Foot pedal operation for single cycle;

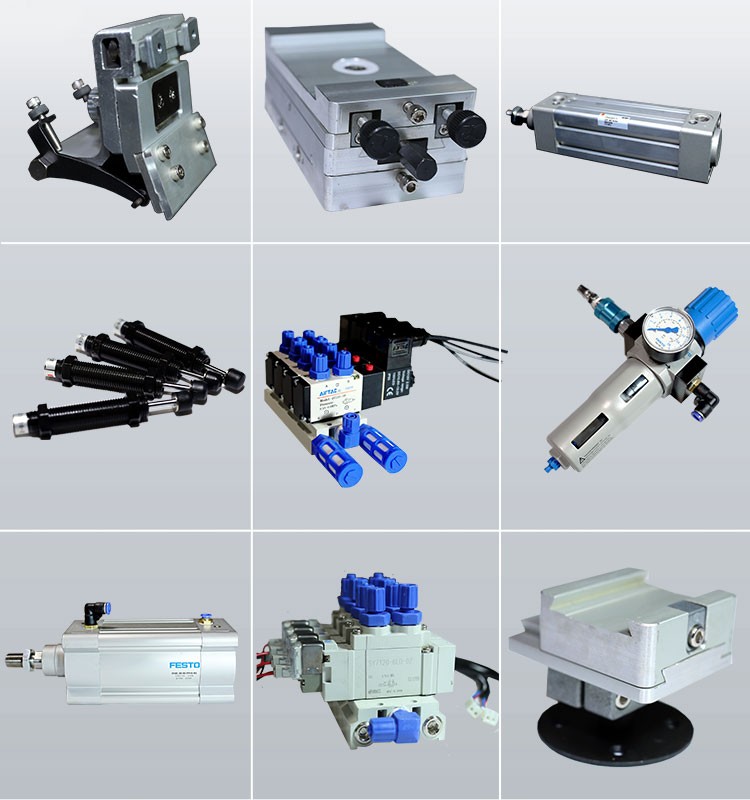

*Using Germany FESTO pneumatic components;
*Installed safety guard and emergency stop button(optional);
*Complying with CE safety standards.

Hot sale EN-C160/4S 4 color sealed ink cup pad printing machine Specifications:

Model NO.	EN-C160/4S
Plate size	250 x 100mm
Max. printing size	80x80mm
Printing capacity	900 cycles/hour
Drive	Pneumatic
Front & back working stroke	160mm
Air requirement	5 bar (72.5 psi)
Main voltage	110V/220V 50/60Hz 40W
Machine size	L1050 x W830 x H1430 mm
Weight	135kg

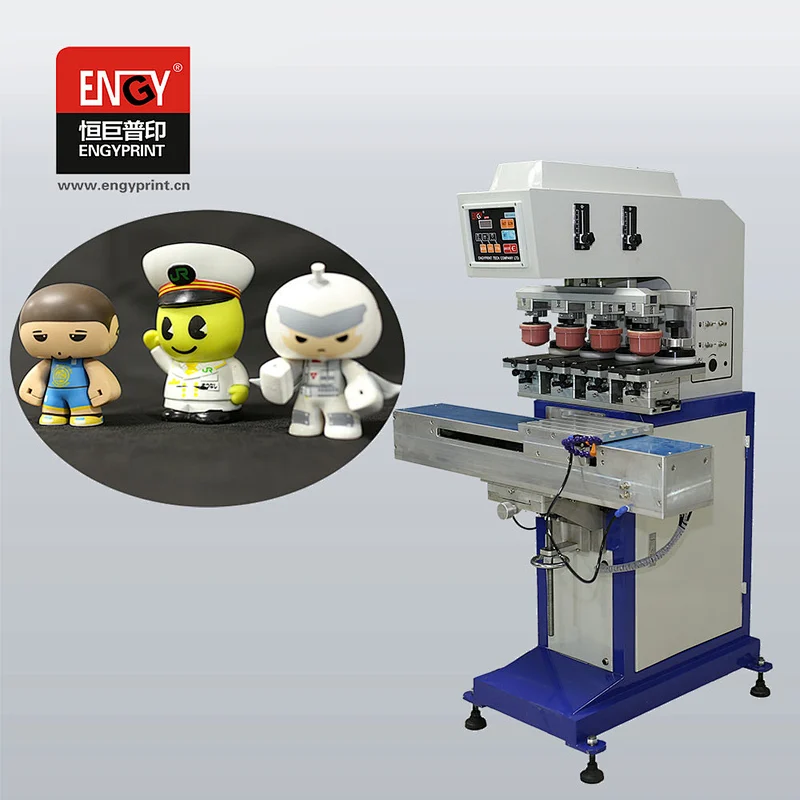

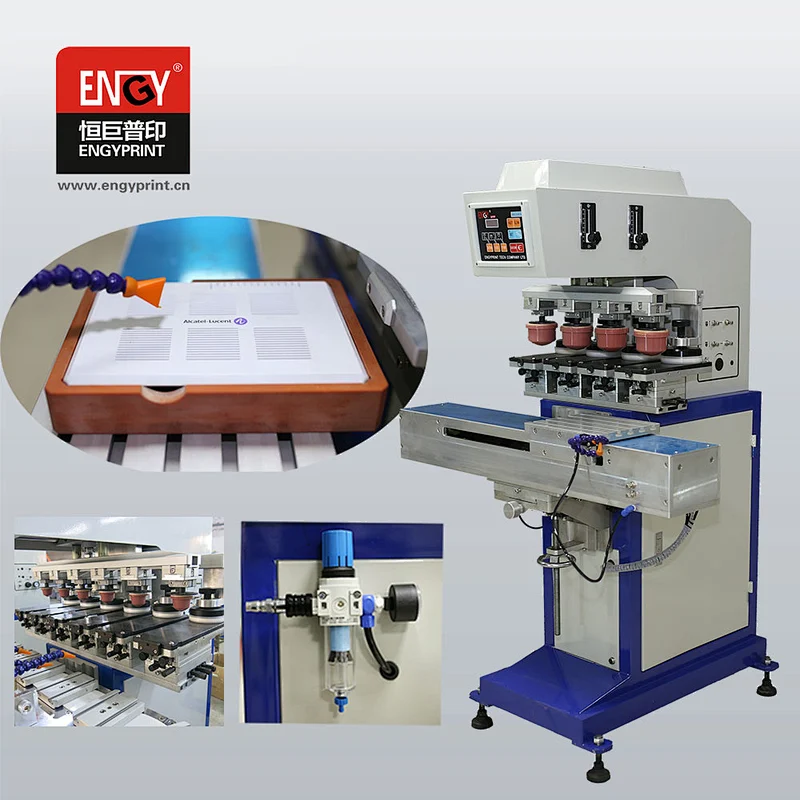

Hot sale EN-C160/4S 4 color sealed ink cup pad printing machine Details:

Applications

Fields of Pad Printer Application:
Pad printer is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting goods, stationery, etc.
For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches, cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes, electronic components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.
