Shuttle Station/90mm Ink Cup/PLC Two Color Pad Printing Machine from China Manufacturer

Type:PAD PRINTER
Place of Origin:CN;GUA
Gross Power:40W
Plate Type:GRAVURE
Brand Name:ENGY
Condition:New
Usage:Card Printer
Usage:Label Printer
Usage:Tube Printer
After-sales Service Provided:Engineers available to service machinery overseas
Voltage:220V/110V
Certification:CE Certification
Color & Page:Two colors
Dimensions(L*W*H):L680 x W460 x H1310 mm
Automatic Grade:Semi-automatic
Weight:90KG
Model Number:EN-Y150/2
Description of product:Two Color Pneumatic Pad Printer
Max. printing size:80x120mm
Printing capacity:1,800 cycles/hour
Drive:Pneumatic
Front & back working stroke:150mm
Air consumption:91litre/min(5bar)
Warranty:one year
Delivery time:5 days
Customized:Yes
key words:pad printing machine

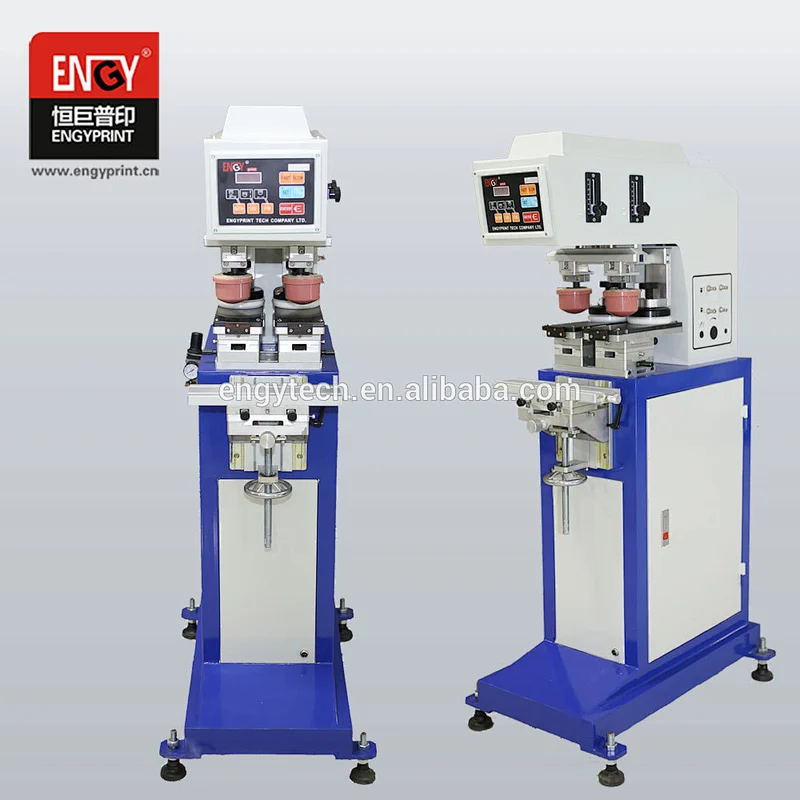

Shuttle Station/90mm Ink Cup/PLC Two Color Pad Printing Machine

Product Description

Shuttle Station/90mm Ink Cup/PLC Two Color Pad Printing Machine Standard Features

Standard Features:

Microprocessor operation system, electro-pneumatic control;
125mm working stroke, open tray design;
Programmable up and down, forward and rear stroke;
Versatile X, Y printing pad adjustment;
Ink cup base with X, Y, Z adjustment;
Heavy-duty construction with cabinet ensures years of reliable operation;
Stable, durable and fine workmanship;
Available for 1 color small image printing;
Foot pedal operation for single cycle;
Using SMC pneumatic components;
Installed safety guard and emergency stop button;
Complying with CE safety standards;
Operation manual.

Shuttle Station/90mm Ink Cup/PLC Two Color Pad Printing Machine Specifications:

Model NO.	EN-Y150/2S
Plate size	150x100mm
Max. printing size	80x120mm
Printing capacity	1800cycles/hr
Drive	Pneumatic
Front & back working stroke	150mm
Air requirement	5 bar (72.5 psi)
Main voltage	110V/220V 50/60Hz 40W
Machine size	L780xW500xH1350
Weight	90kg

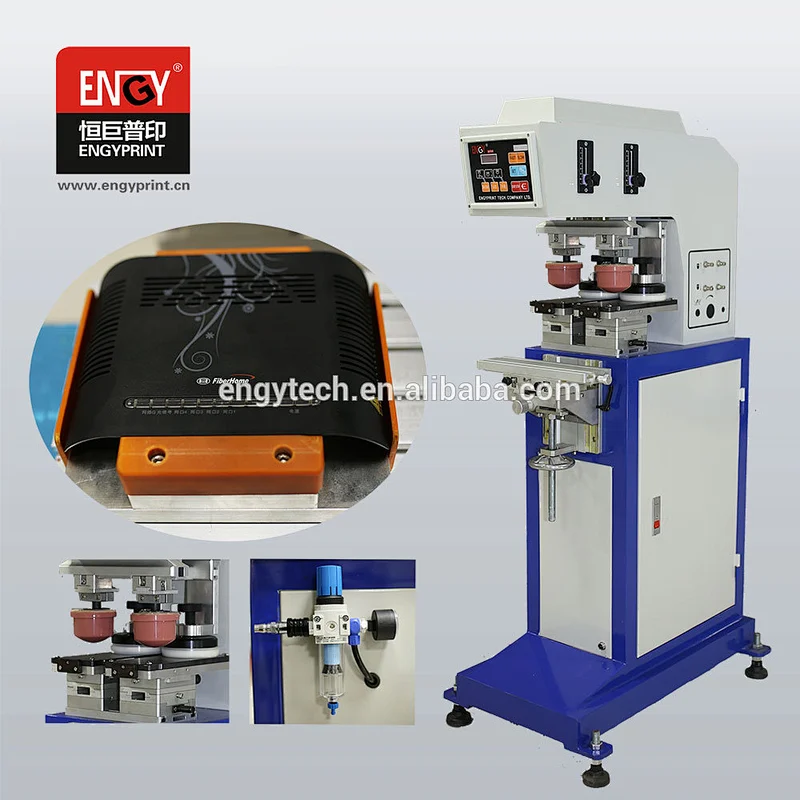

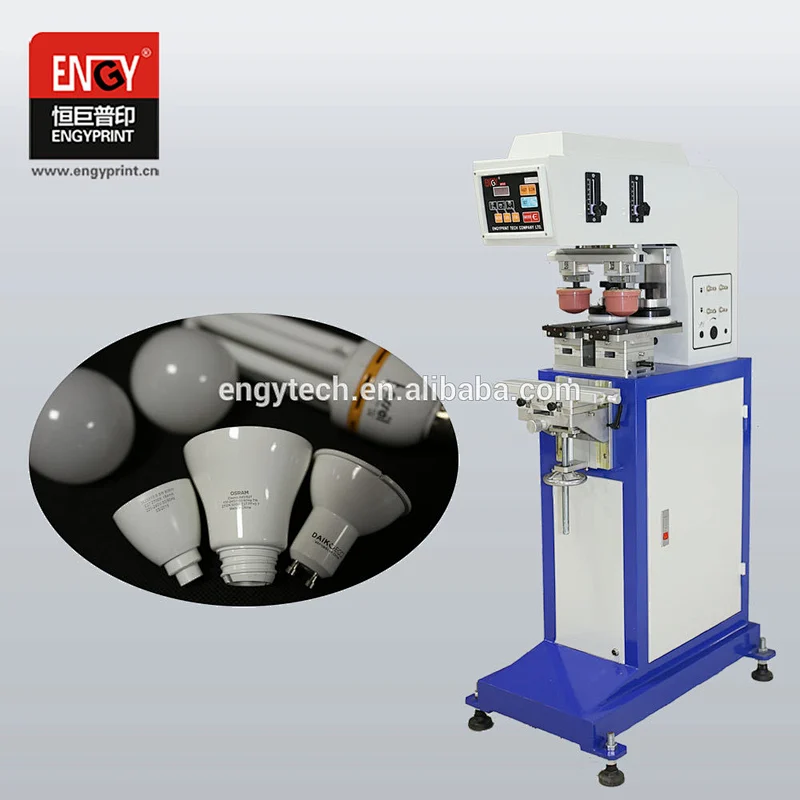

Shuttle Station/90mm Ink Cup/PLC Two Color Pad Printing Machine Details:

Applications

Fields of Pad Printer Application:
Pad printer is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting goods, stationery, etc.
For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches, cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes, electronic components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.
