Wholesale products china stainless steel plate acid etching machine from China Manufacturer

Wholesale products china stainless steel plate acid etching machine

Product Description

Machine Model	EN-SK/6000
Machine Name	Automatic Conveyer Upper and Lower Spray Double-sided Metal Etching Mchine
Power Rating	380V/3.1kw
Max.Work Spec	600 X 900 mm
Machine Size	L1145X W435X H800 mm
Liquid Content	150L
Etching Precision	±0.002-0.003 mm
Other size canbe made to orders.

1. Specially design of up spraying and apply to the thick and thin steel plates-making for pad printing.

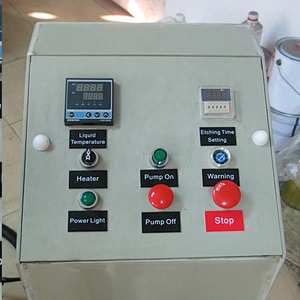

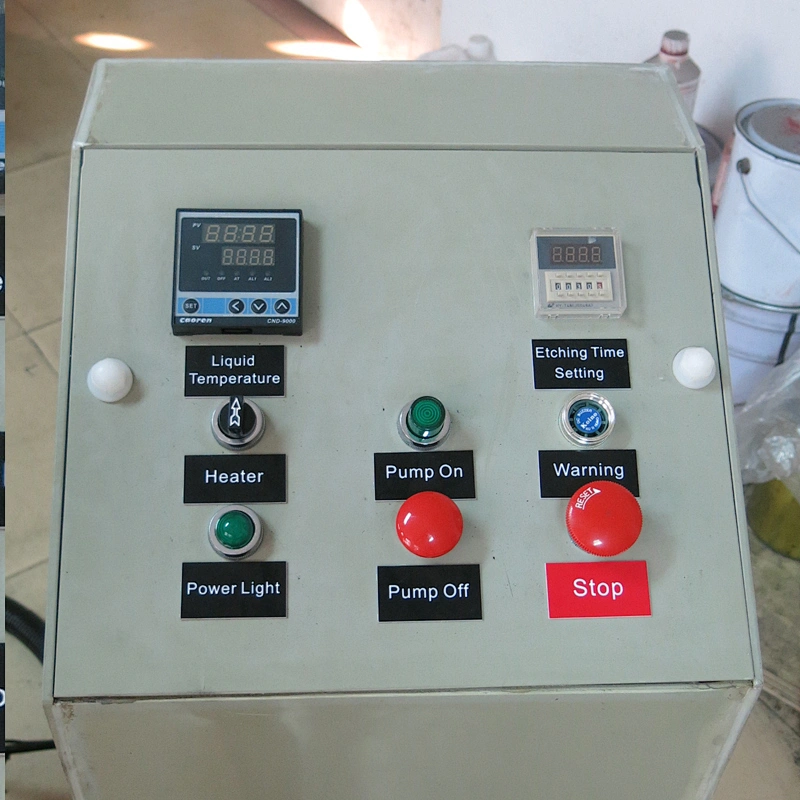

2. With the time-controlled and thermostat system, ensure accurate etching depth.

3.Can etch the metal of standard steel,chrome steel,stainless steel etc.

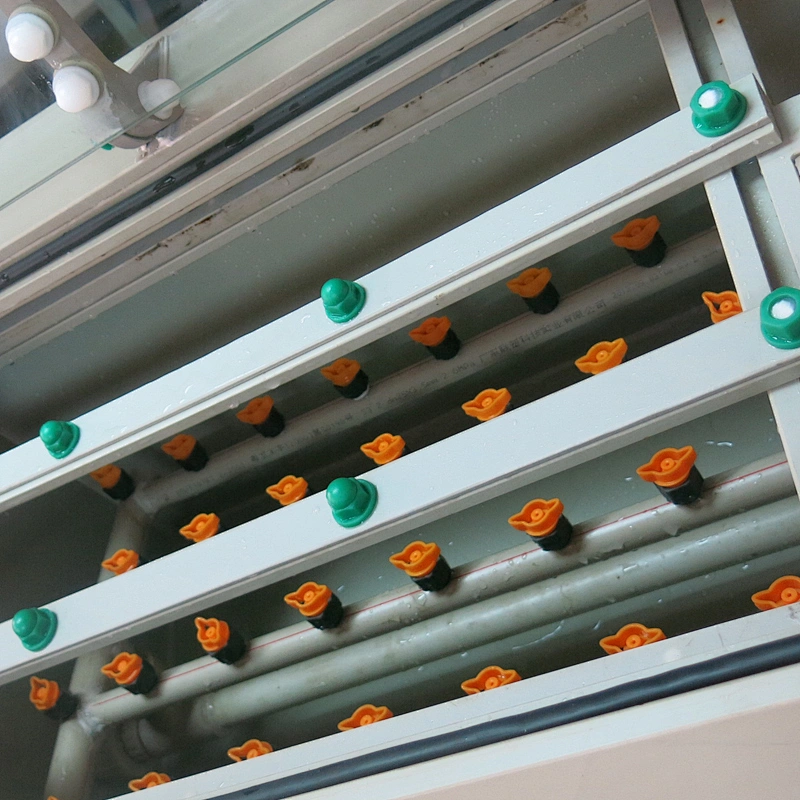

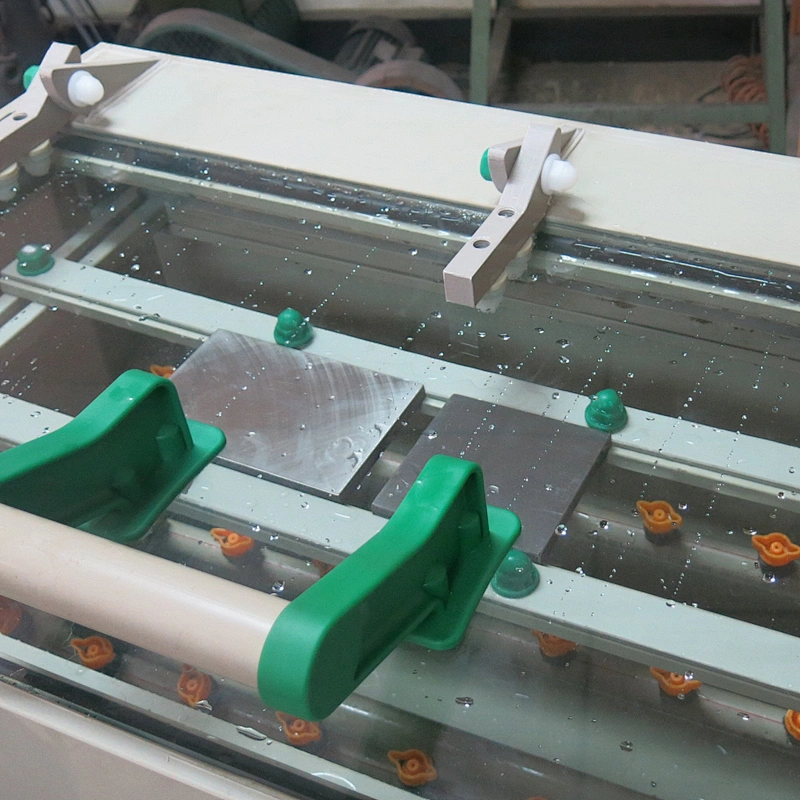

4. The spray nozzles and the plate holder staggered swing make higher etching precision.

5. Etching precision:+/-0.002mm-0.003mm

plate etching machine	Handworketching

1.Our plate etching machines can etch serveral steel plates one time, same the etching depth, good result, environmental protection.	1.Low efficiency,Only one piece of steel can be etched at one time.Not environmental protection.
2. Overcome the manual etching uneven.	2. Handwork etching precision is low.
3. Adopt to making big pad printing steel plate, for exaple:200X550X10mm steel plates.	3.Do not applymaking big pad printing steel plate.
