• After-sales Service Provided:No overseas service provided
• Condition:New
• Automatic Grade:Automatic
• Machine Model:EN-SK/C600X
• Power Rating:380V/7KW
• Liquid capacity:250L
• Maximum Etching Width:600mm
• Etching Window:600mm*900mm
• Shape Size:L2300mm*W1500mm*H1460mm
• Application:Stainless steel plate
• Condition:New
• Machine Type:Etching machine
• Video outgoing-inspection:Provided
• Machinery Test Report:Provided
• Warranty of core components:3 months
• Core Components:Gear
• Core Components:Pump
• Warranty:1 Year
• After-sales Service Provided:Online support
• Key Selling Points:Automatic
• After Warranty Service:Online support
• Local Service Location:None
• Showroom Location:None
• Place of Origin:CN;GUA
• Brand Name:ENGY
• Marketing Type:other
• Applicable Industries:Machinery Repair Shops
• Applicable Industries:Retail
• Applicable Industries:Printing Shops
• Applicable Industries:Other
• Applicable Industries:Pad Printing Factory
• Applicable Industries:Pad printing supplies shop

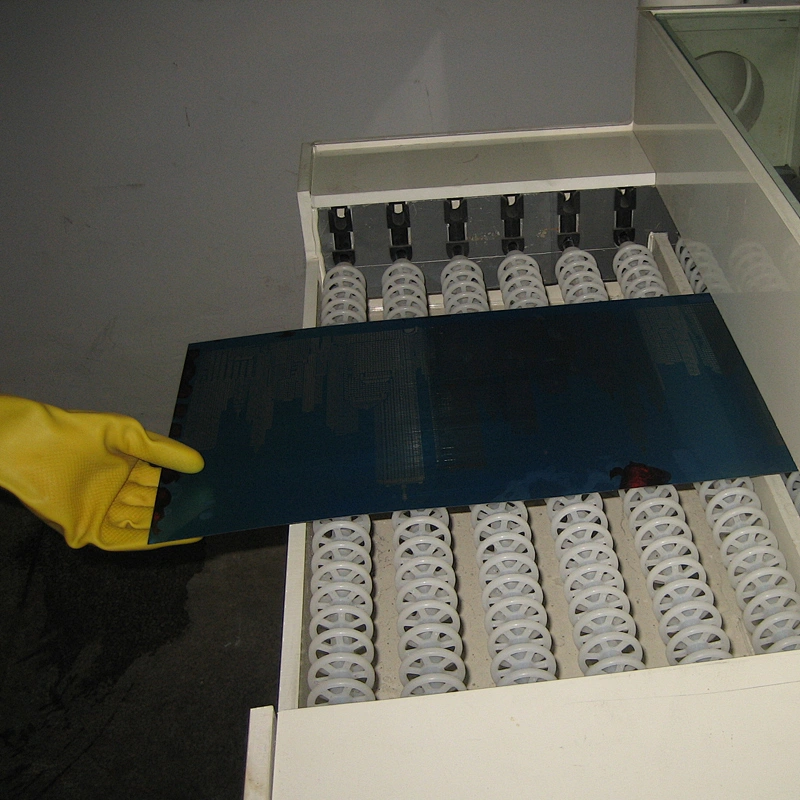

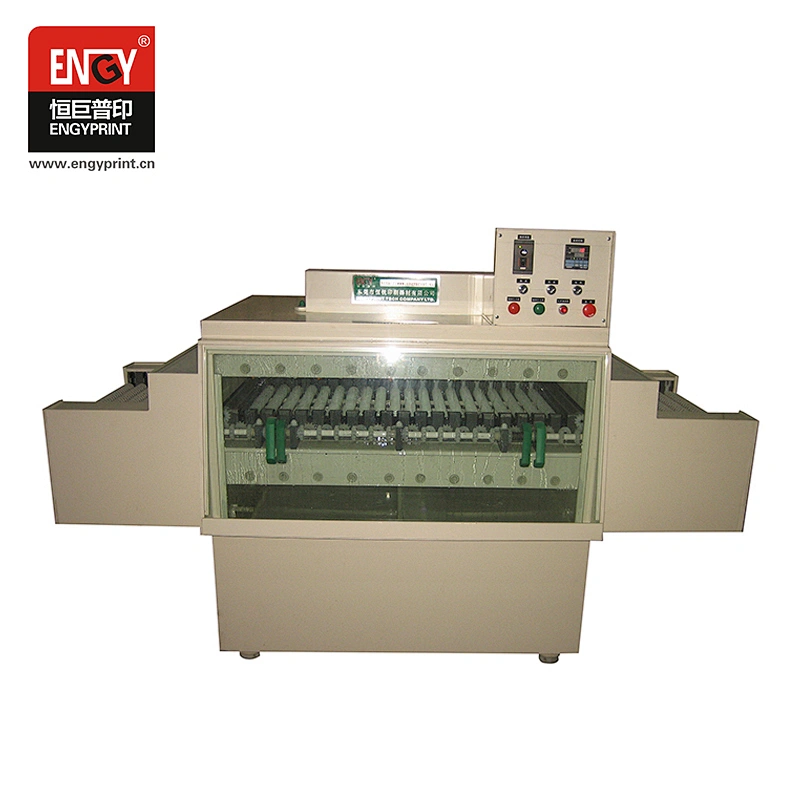

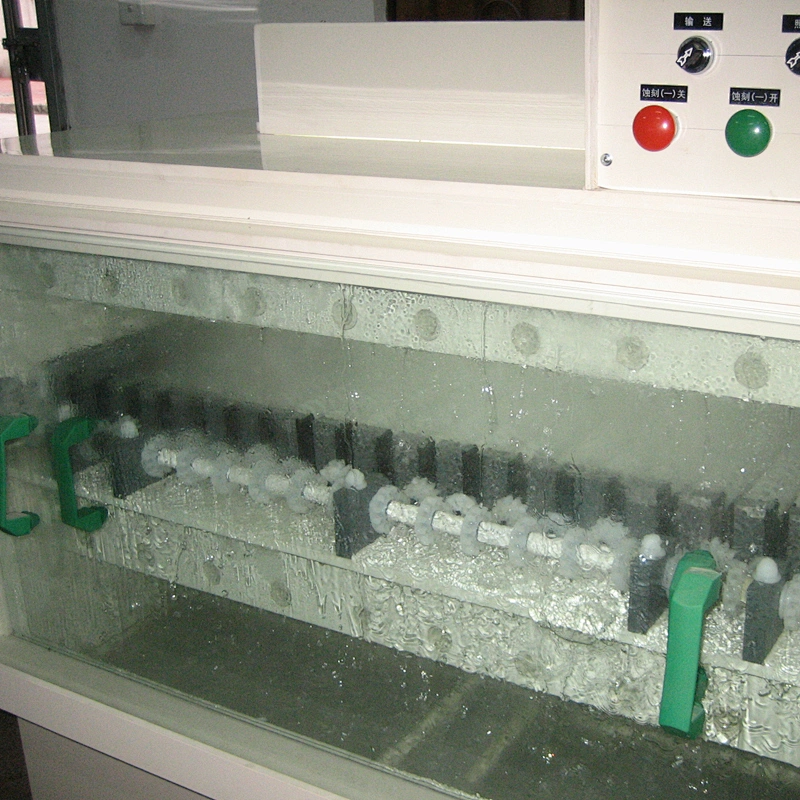

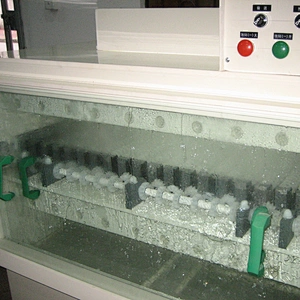

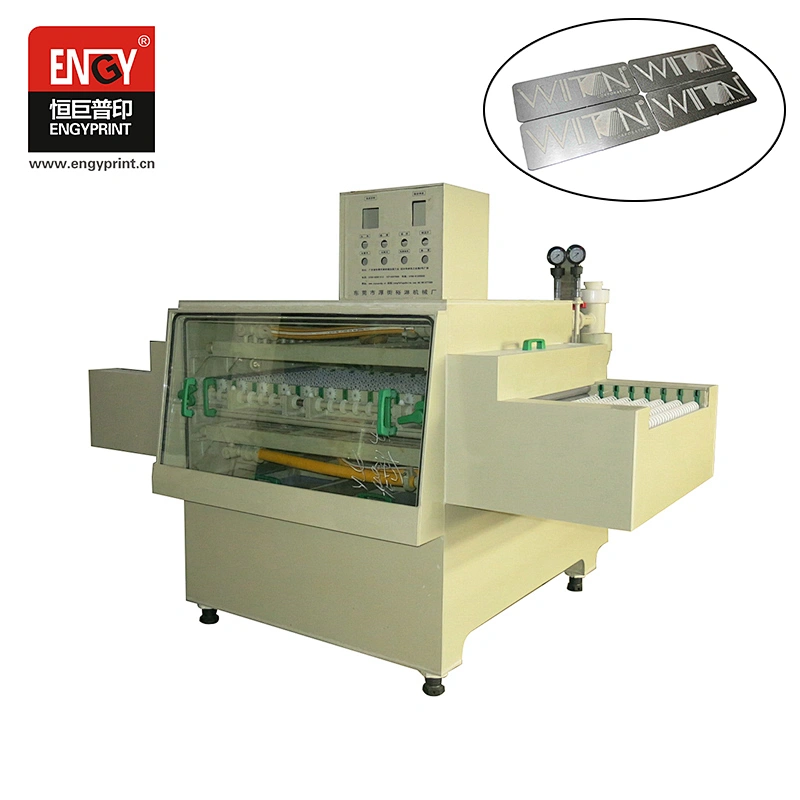

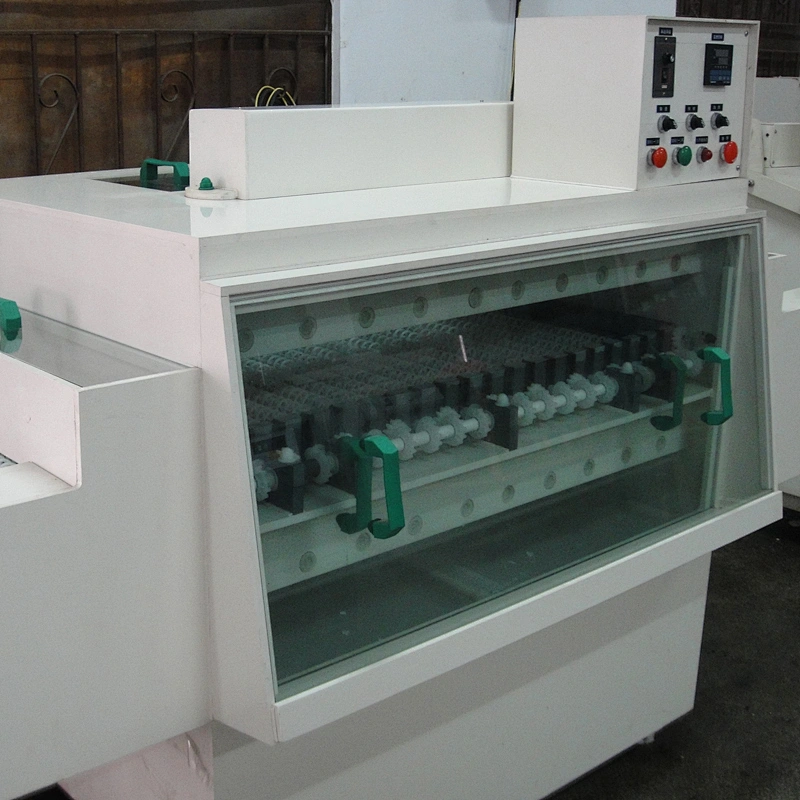

EN-SK/C600X Automatic Conveyer Double-sided Chemical Metal Etching Machine

Characters:

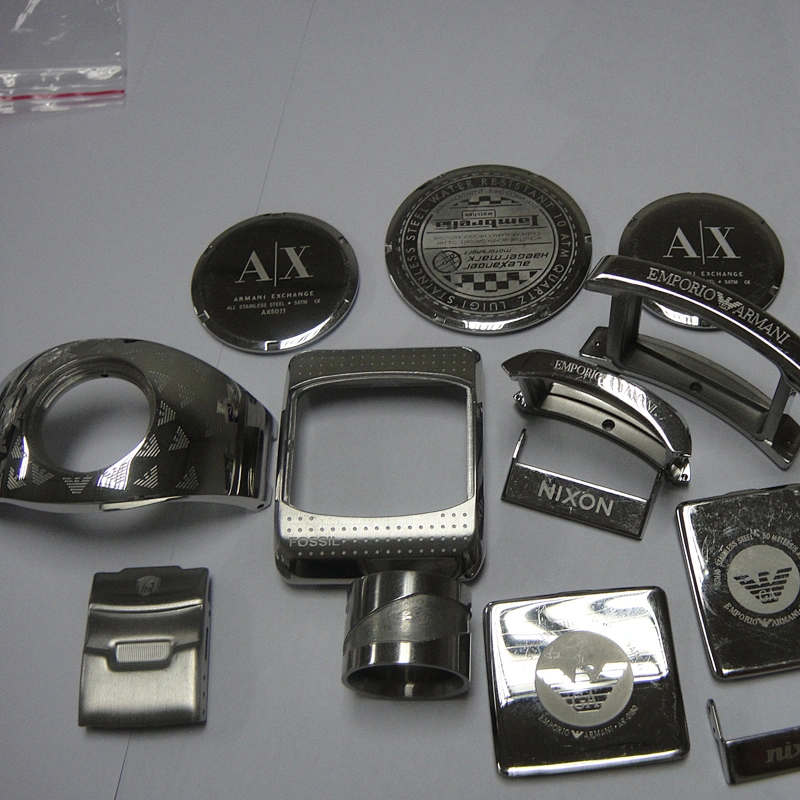

 — Upper and lower double-sided spray, especially recommended for etching the double-sided metal sign cards and the thin metal parts which need to do hollowetching.And single-sided etching is also very good.

— Can etch the metal of iron,standard steel,chrome steel,stainless steel,copper,aluminum,etc.

— Auto delivery etching parts,it has great etching precision with high output.

— The machine's etching time controller and liquid thermostat ensure the etching depth accurate and stable.

— Easy setting and opertions.

— The etching conveyer width or the etching area length can be made to order.

Advantage:

1. Our this etching machine can etch serveral steel plates one time, auto conveying,same the etching depth, good result, environmental protection.

2. Overcome the manual etching uneven,and can etching double side at the same time.

3. Adapt to making big pad printing steel plate, for exaple:500X800X10mm steel plates.

Certifications

Deatials of High-speed Conveyor Two Windows Ferric trichloride/chemical etching machine for stainless steel, copper, Aluminum and so on
